STEUERUNG

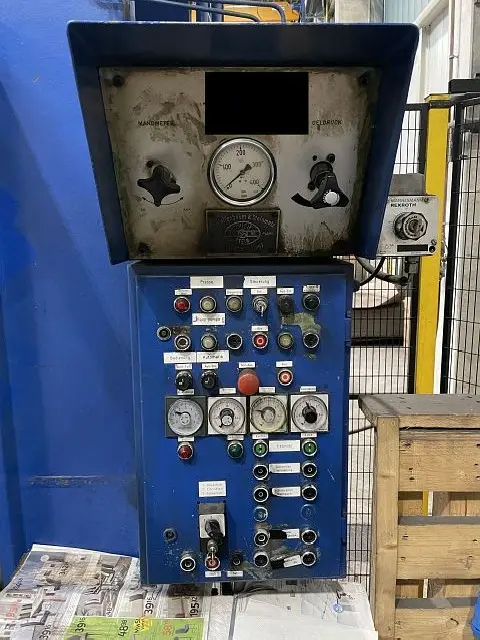

konventionell
PRESSEN-BAUART
Antriebssystem: hydraulisch
Anzahl Pleuel / Zylinder: 1
PRESSENKRÄFTE
Gesamt-Nennkraft: 500 to

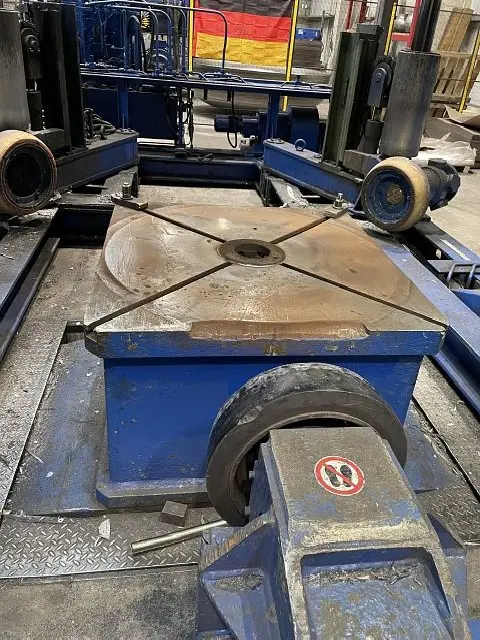

PRESSENTISCH
Aufspannfläche (links-rechts): 1200 mm
Aufspannfläche (vorne-hinten): 1200 mm
STÖSSEL
Aufspannfläche Durchmesser: 800 mm
Hub: 800 mm
Hubzahl max.: 32 /min
STÖSSEL (HYDR. PRESSE)
Zustellgeschwindigkeit max.: 220 mm/s
Arbeitsgeschwindigkeit max.: 9 mm/s
Rückzugsgeschwindigkeit max.: 190 mm/s
Rückstellkraft: 75 to
WERKZEUG-EINBAUABMESSUNGEN
Abstand Tisch - Stössel max.: 1015 mm
Abstand zw. den Ständern (links-rechts): 4800 mm
ELEKTRISCHE ANSCHLUSSDATEN
Leistungsaufnahme (gesamt): 75 kW
ABMESSUNGEN / GEWICHTE
Gesamtgewicht ca.: 42000 kg

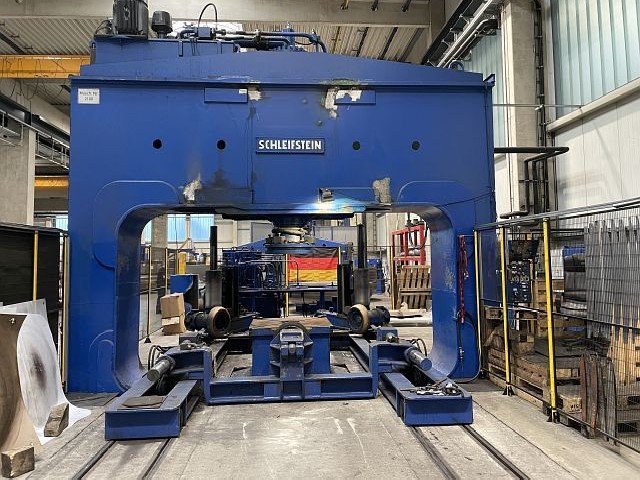

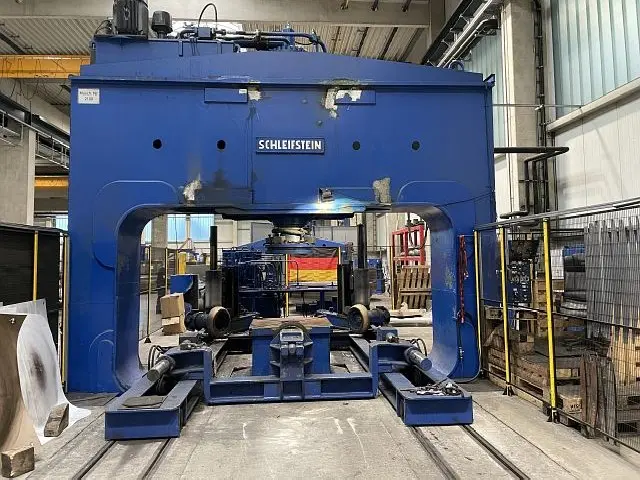

The equipment consists of a frame hydraulic press RHP 500/4.8

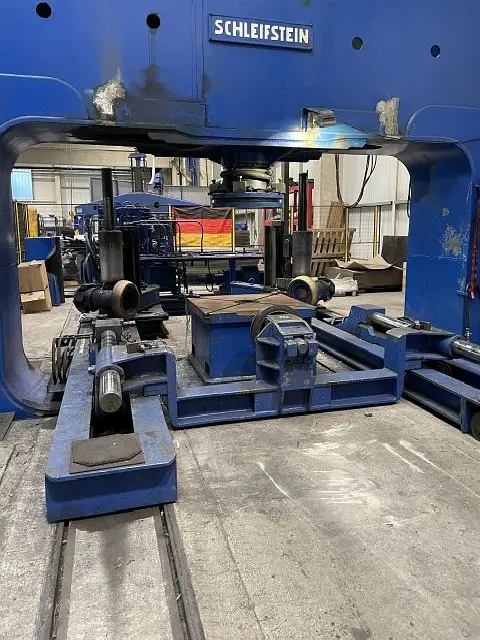

and a fully mechanical manipulator VMB 4732.
Weight of the manipulator 15 tons.
max. diameter of the flat blank 4700 mm
min. diameter of the flat blank 1800 mm
Weight of the blank max. 4500 kg
Press is still in production.
No forming moulds with the press.
