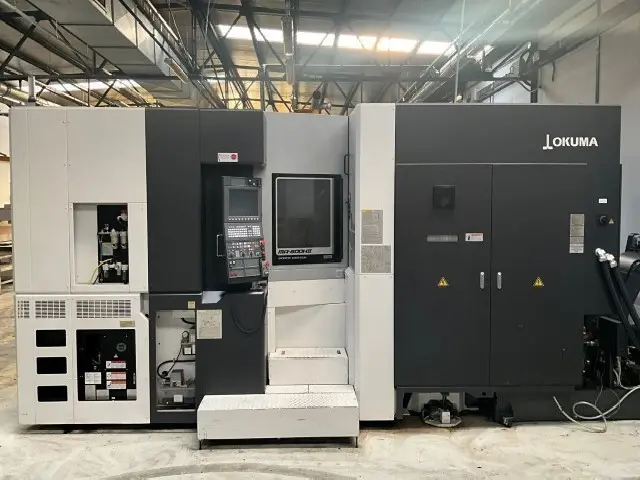

Fräsmaschine - Horizontal OKUMA MA-600HII

Maschinenart: Bearbeitungszentrum - Horizontal
Brand: Okuma
Year: 2018
Serial number: 213766
Maximum machine capacity: 1000x900x1000mm;
travel x-axis (column right/left): 1000mm;
travel y-axis (spindle up/down): 900mm;
travel z-axis (table traverse): 1000mm;
travel spindle center to table upper surface: 50 to 950mm;
travel spindle end to table center: 70 to 1070mm;

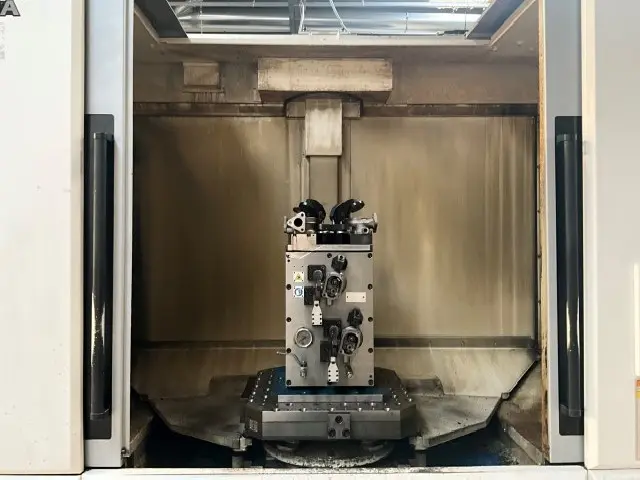

table size: 630 x 630mm; 2 tables;
maximum table load capacity: 1200kg;
spindle speed range (wide range): 50 to 6000 min/-1 (50 to 12000 min/-1);
spindle diameter: 100mm; rapid feed rate: 60000 mm/min;
tool magazine capacity: 60 tools;
maximum tool diameter (with adjacent tools): 140mm;
maximum tool diameter (without adjacent tools): 240mm;
maximum tool length: 450mm;
maximum tool weight: 25kg;
taper iso: BT 50;

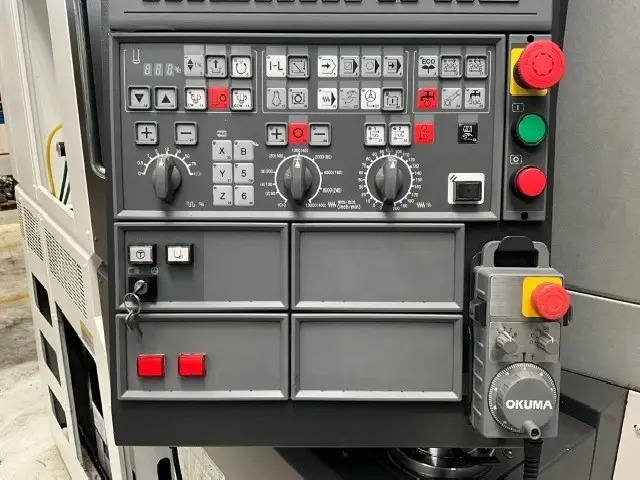

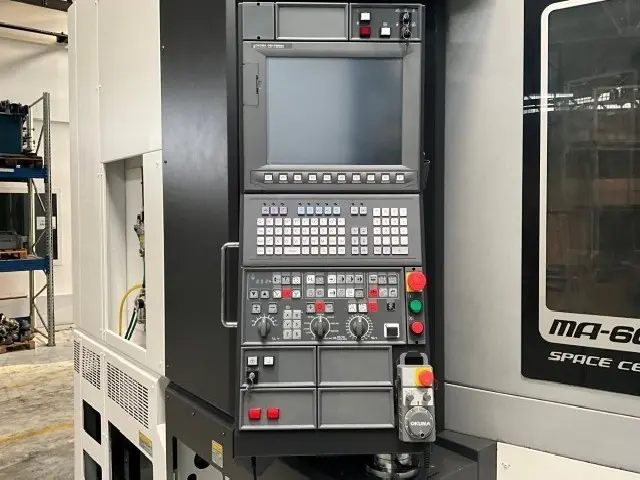

CNC control panel: Okuma OSP-P300MA;
Dimensions (LXWXH): 3410x6495x3173mm;
Weight: 24500kg
with spare parts and documents;
