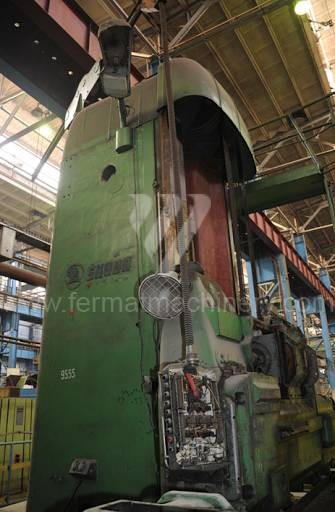

| Hersteller | ŠKODA MACHINE TOOL a.s. |
| Typ | W 160 |
| Baujahr | 1971 |
| Spindeldrehzahlen | - /min. |
| x-Weg | 3000 mm |
| y-Weg | 2500 mm |
| max. Tischbelastung | 20000 kg |
| Maschinenabmessungen LxBxH | 5900x12440x7620 mm |
| Maschinengewicht | 68000 kg |
| Spindelkegel | ISO 50 . |
| Werkzeugmagazin | nein |
| Spindeldurchmesser | 160 mm |
| Innere Kühlmittelzufuhr | nein |
| Spindelvorschub W-Achse | 1600 mm |
| Hauptmotorleistung | 110 kW |
| Drehtischaufspannfläche | 2000x2000 mm |
Erweiterung ram (V): 1250 mm
Inner cone of spindle: 100 metrical
Max. spindle torque: 250000 kgcm
Bed height: 550 mm
Width of bed guides: 2000 mm
Min. height of spindle axis over bed surface: 1400 mm
Min. height of spindle axis over bed surface: 1400 mm
Range of steplessly adjustable spindle speeds: 2-800 rpm
Range of steplessly adjustable drilling feeds (spindle and quill): 0,5-1600 mm/min
Range of steplessly adjustable milling feeds (spindle headstock and column): 1-3200 mm/min
Speed of rapid travel at drilling (spindle, quill): 1600 mm/min
Speed of rapid travel at milling (spindle headstock in vertical direction, column): 3200 mm/min
Power of adjustable electric motor of direct current of spindle drive: 6-55 kW
Range of speeds of spindle electric motor: 210-2700 rpm
Machine in working condition
Verkauft
