| Hersteller | Titan |
| Typ | SC43-3HY-CNC-MSF-01 |
| Baujahr | 2009 |
| Drehdurchmesser | 4250 mm |
| Steuerung | Siemens Sinumerik 850D |
| Drehhöhe | 3200 mm |
| Tischdurchmesser | 4000 mm |
| Motorleistung | 0 HP/kW |
Anzahl Werkzeugposition: 12
Anzahl Paletten: 1

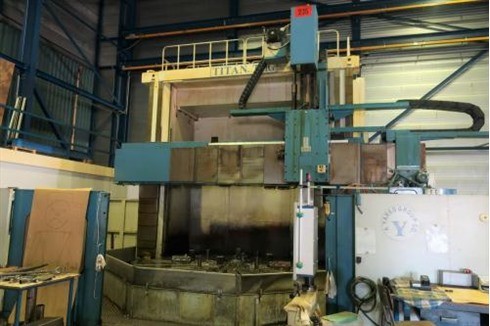

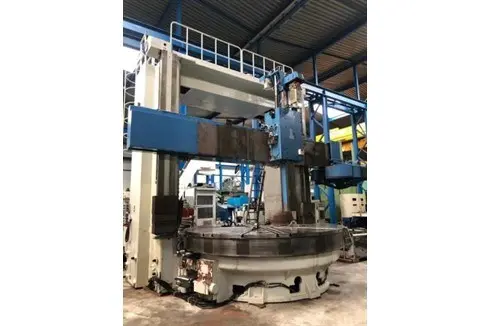

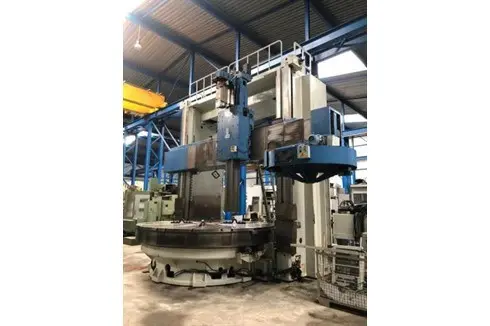

Lathes / Vertical turret lathes
Brand: Titan
Type: SC43-3HY-CNC-MSF-01

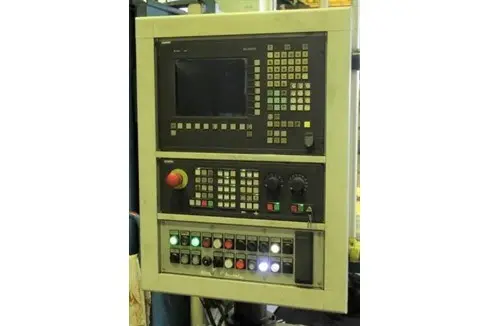

CNC brand: Siemens
CNC model: Sinumerik 840D
Year of make: 2009

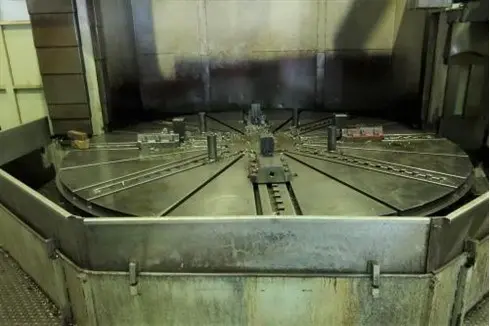

Jawplate diameter: 4.000 mm ø
Maximum turning diameter : 4.250 mm ø
Turning height: 3.200 / 2.950 mm
Intake: BT50
Revolutions: 1 - 60 RPM

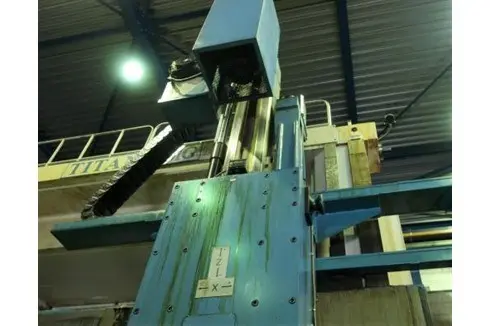

Vertical travel of RAM (on ballscrew): 1.750 mm

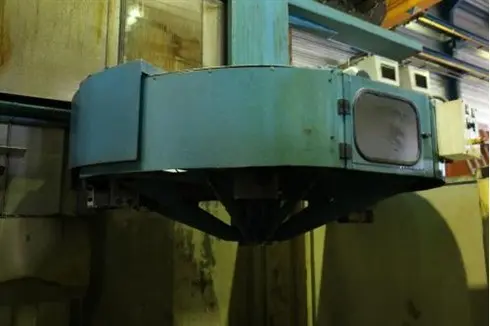

Tool changer: 12 Positions
Maximum table load: 80.000 kg
Machine dimensions (lxwxh): 7.900 x 6.000 x 7.800 mm
Machine weight: 95.000 kg
RAM head size: 300 x 300 mm
Main table motor: 100 kW
Double column
CNC controlled
C axis attachment
Milling attachment

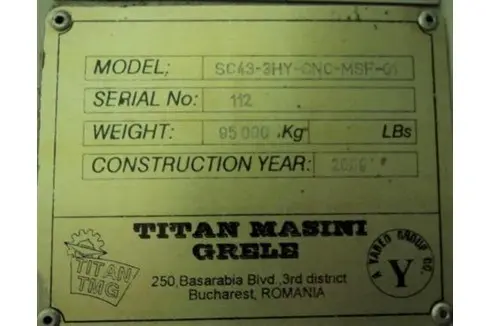

Machine nr.: D785
Verkauft
