PRESSEN-BAUART
Anzahl Stösselwirkungen: 11
STÖSSEL
Hub: 114 mm
Hubzahl max.: 90 /min
WERKZEUG-EINBAUABMESSUNGEN
Werkzeug-Einbauhöhe (Hub unten, Verstellung oben): 127 mm
ABMESSUNGEN / GEWICHTE
Platzbedarf -links/rechts-: 3000 mm
Platzbedarf -vorne/hinten-: 1470 mm
Gesamthöhe: 2900 mm
Gesamtgewicht ca.: 9980 kg
• Slide type – FOD
• Allen Bradley 1336 VVF drive
• Feed – single row

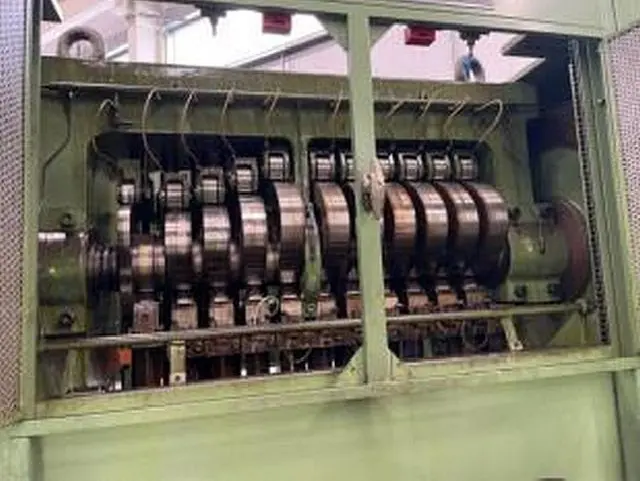

• Cams – full follow
• Max shell height 54 mm
• Max blank diameter 80 mm
• Tooling to suit Parker refills. Also tooling to suit Lamy refills. Press is currently fitted with an extender ram
• Pressmate mechanical stagger feed – not currently fitted to the press
• Rudi HUTT pen refill packaging machine with feeding devices
