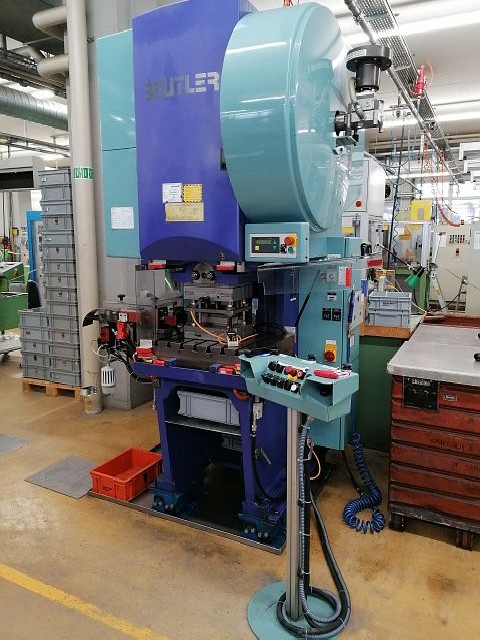

Stanzautomat BEUTLER P96-C400 , B.j. 1996

PRESS FORCES
  total force (nominal): 40 to

PRESS TABLE
  table surface (left-right): 710 mm
  table surface (front-back): 500 mm
  opening in bed (left-right): 225 mm
  opening in bed (front-back): 200 mm

SLIDE
  table surface (left-right): 400 mm
  table surface (front-back): 315 mm
  stroke rate (max.): 150 /min

SLIDE (MECHAN. PRESS)
  slide adjustment: 110 mm
  stroke min.: 8 mm
  stroke max.: 100 mm

TOOL ASSEMBLY DIMENSIONS
  shut height (stroke down, adjustment up), BDC: 335 mm

ELECTRICAL SPECIFICATIONS
  total power consumption: 3 kW
  mains voltage: 400 V
  mains frequency: 50 Hz
