PRESS DESIGN
drive system: eccentric / crank
PRESS FORCES
total force (nominal): 1600 to
PRESS TABLE
table surface (left-right): 940 mm
table surface (front-back): 1100 mm
SLIDE
table surface (left-right): 860 mm
table surface (front-back): 910 mm
stroke: 300 mm
stroke rate (max.): 85 /min
SLIDE (MECHAN. PRESS)
slide adjustment: 10 mm
TOOL ASSEMBLY DIMENSIONS
shut height (stroke down, adjustment up), BDC: 660 mm
passline opening (free passage in side columns): 600 mm
free passage between side columns (height): 660 mm
ELECTRICAL SPECIFICATIONS
mains voltage: 380 V
mains frequency: 50 Hz
DIMENSIONS / WEIGHTS
total weight approx.: 120000 kg
ready to run

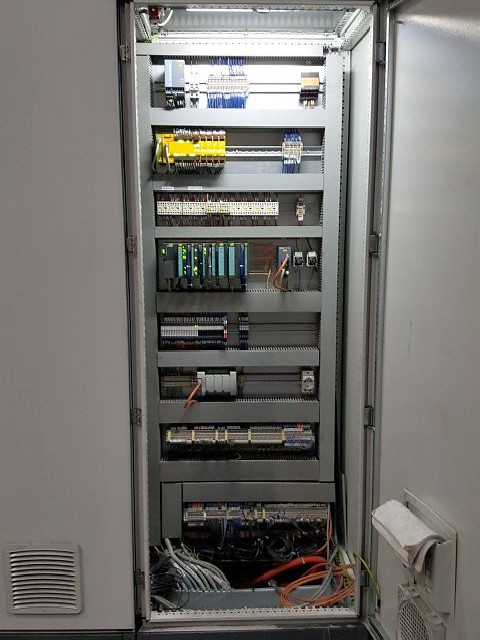

2016 rebuilt with new controller SIEMENS and safety controller PILZ
Sale due to insolvency of the owners on behalf of the administrator.
Please ask us for the project-specific tender.
