| Hersteller | STRATASYS OBJET |
| Typ | Objet 1000Plus |
| Baujahr | 2015 |

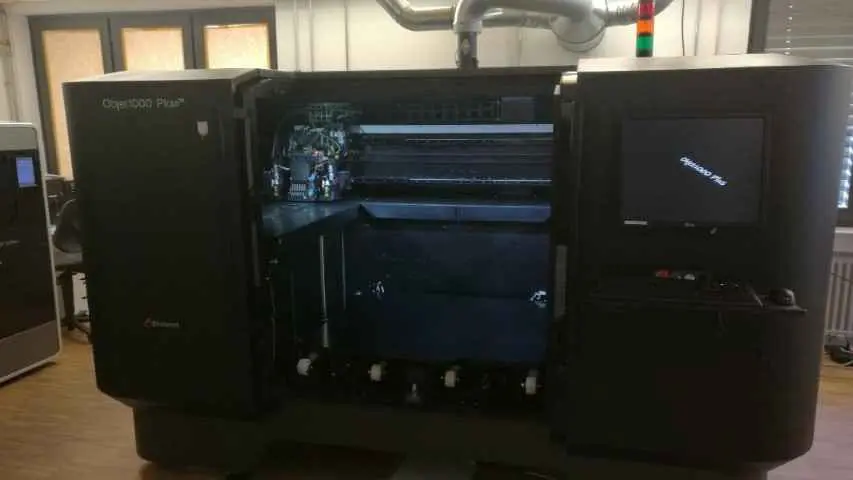

Technical data Objet 1000 Plus
Construction platform 1.000 x 800 x 500 mm
Max. Construction volume (XYZ) 1,000 x 800 x 500 mm
Min. Wall thickness 0.6 mm (0.8 mm for Digital ABS)
Achievable accuracy 0.1 - 0.6 mm (depending on component geometry, size, orientation, material and print mode)
Resolution (XYZ) 300 x 300 x 1,600 dpi
Horizontal layer thickness High Quality 0.016 mm
High Speed / Multimaterial 0.034 mm
Number of printheads 8 (each with 96 nozzles)
Material capacity 4 x 18 kg model material, 2 x 18 kg support material
Size (BTH) 1,960 × 2,868 × 2,102 mm
Weight 2,200 kg
Electrical connection values 230V; 50/60 Hz, 8A (single phase)
Ambient temperature 18-22 ° C
Rel. Humidity 30-70% (non-condensing)
System Compatibility Windows 7 / Windows 8 (64-bit)
Network connection Ethernet TCP / IP 10/100 base T
Certifications CE / FCC
* Rubbery materials and Digital ABS can only be processed with 0.034 mm layer thickness. Remaining materials free.
