Hersteller | ELB |
Typ | SWB 012 NC-K |
Baujahr | 1986 |
Gesamtleistungsbedarf | kW |
Schleiflänge | 1200 mm |
Schleifbreite | 550 mm |
Werkstückhöhe | mm |
Steuerung | NC |
Maschinengewicht | 5,6 t |
Kühlmitteleinrichtung | |
Raumbedarf ca. | m |
Lieferzeit | sofort |
Preis |
Auf Anfrage |
Technische Daten | , Zubehör und Beschreibung der Maschine sind unverbindlich - |

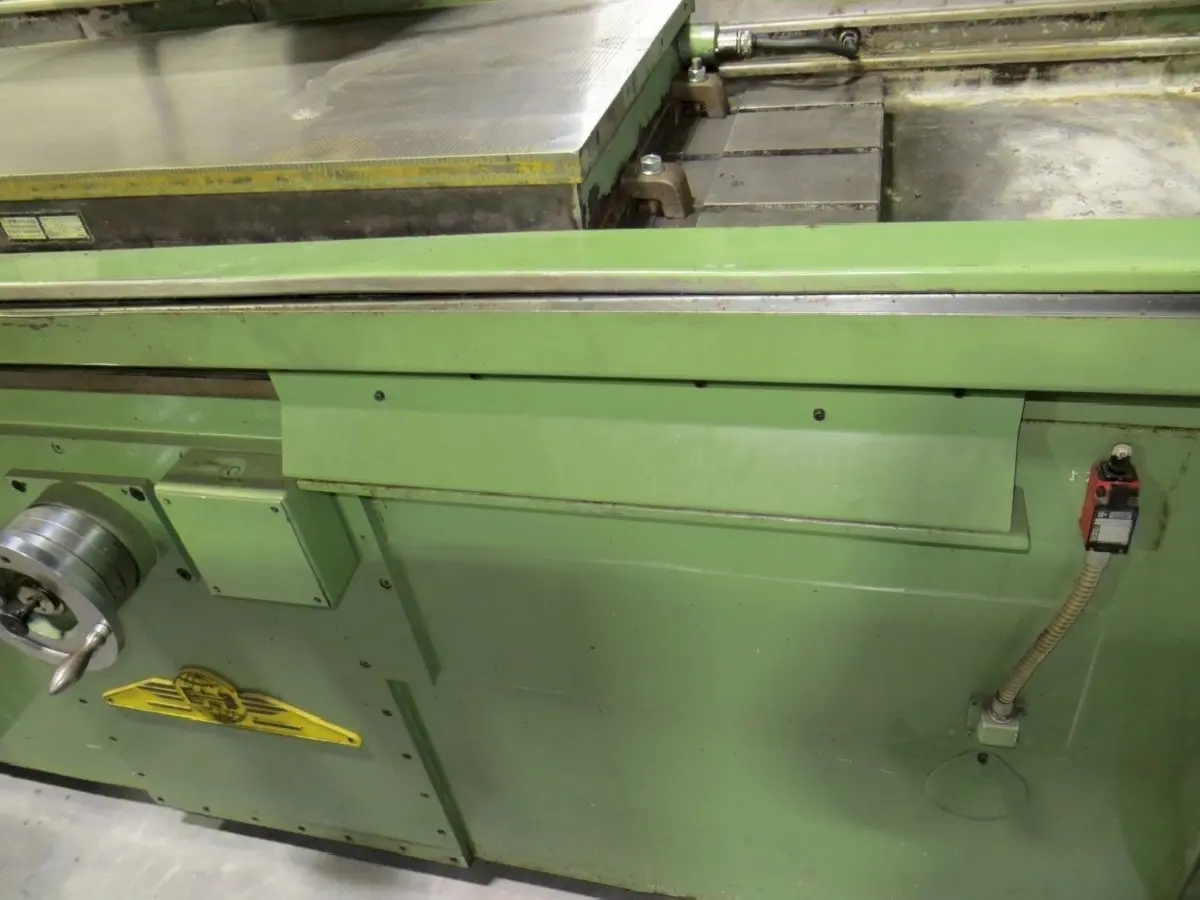

Maschinenart: Flachschleifmaschine - Horizontal
- automatische Zustellung
- Elektromagnet
- Abrichtvorrichtung
Technische Daten / technical details:
gr. Schleiflänge / max. grinding length 1200 mm
gr. Schleifbreite / max. grinding width 550 mm
Elektromagnetabmessungen / electro magnet dimensions 1200x500 mm
Tischlängshub X-Achse / table travel X-axis 1260 mm
Querweg Z-Achse / cross travel Z-axis 470 mm
Drehzahl Schleifscheibe / speed of grinding wheel 1400 UpM
Schleifscheibe / grinding wheel 400x100x127 mm
Antriebsleistung Schleifspindel / drive capacity grinding spindle 11 kW
Gewicht der Maschine / weight 5600 kg
Technical data, accessories and description of the machine are not binding.
